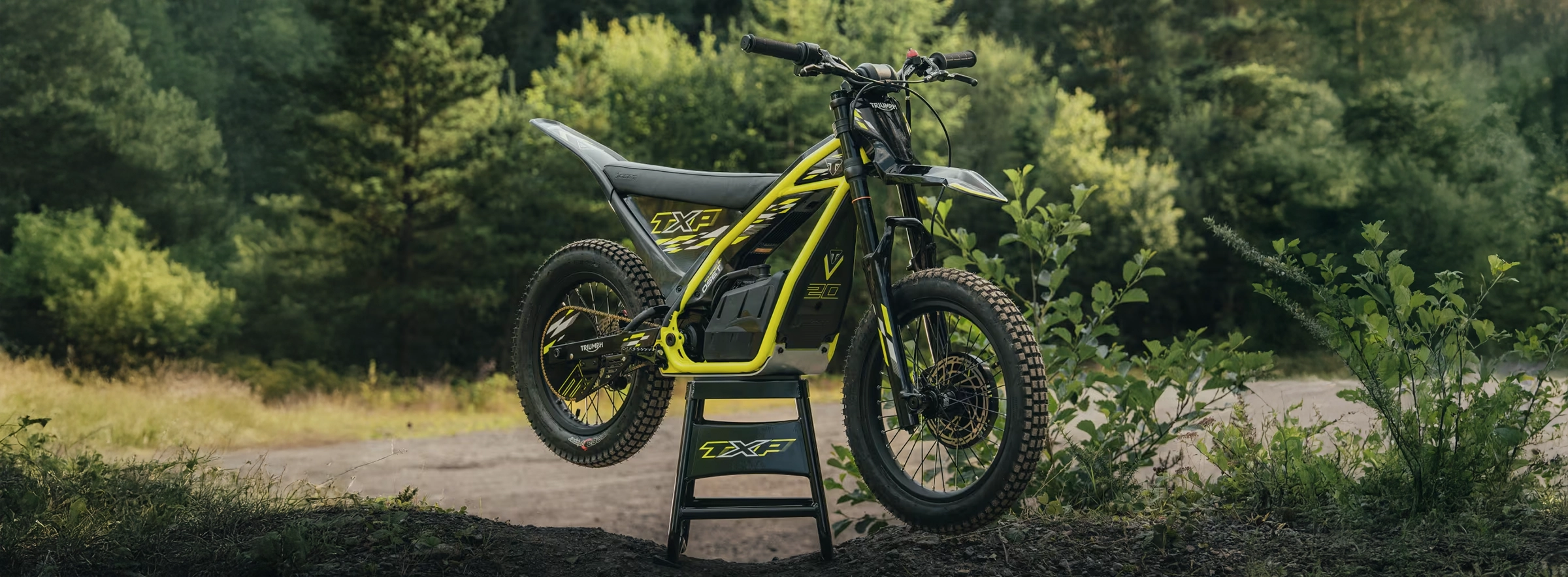

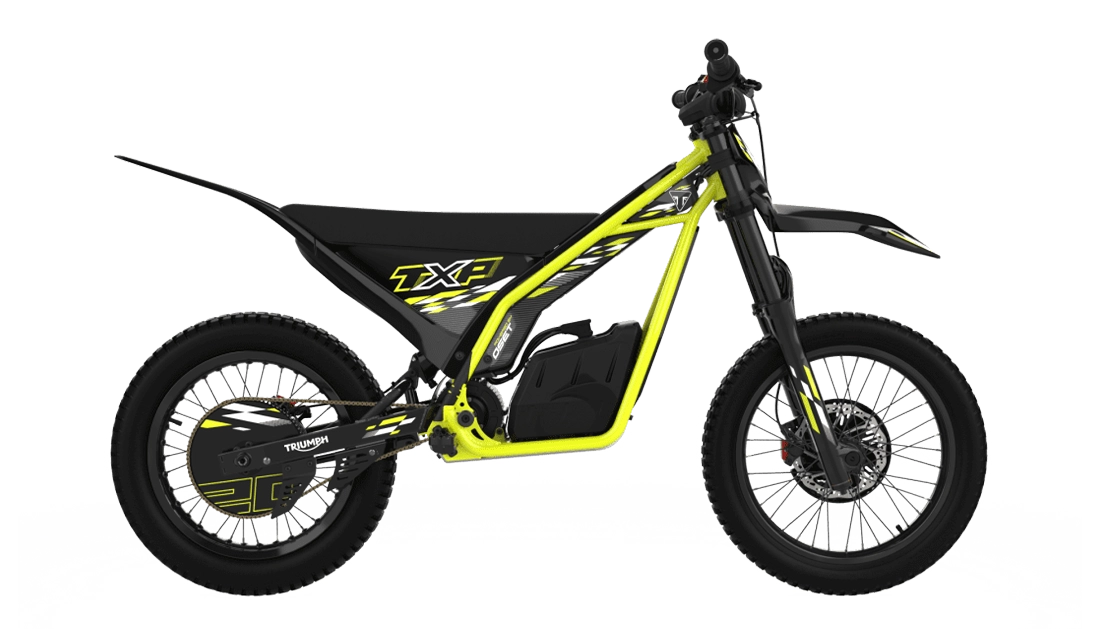

TXP-20
TXP-20

TXP-20

From £3,195

Request Details Get a Finance Quote Book a Test Ride

Description

For young riders ready to take on bigger challenges, the TXP-20 delivers long-lasting electric power, extended range, and premium handling. It’s perfect for trail riding, technical trials, or just pushing limits in the great outdoors.

Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

  • Engine & Transmission
    add remove
    • Engine Type
      Electric Motor 1200w 50v brushless direct current, with encoder position sensor, maximum speed 22 mph
    • Battery
      Sealed 50V, 20AH Lithium-ion battery pack with LED status indicator
    • Controller
      50V 1200W BLDC Sine-Wave field orientated controller IP66 Rated, inline relay & fuse
    • Drive System
      11t front sprocket, 86t rear sprocket. #219 chain
    • Maximum Speed
      22 mi/h
  • Chassis
    add remove
    • Frame
      Tubular frame, steel, self-extracting swingarm axles, bash guard
    • Swingarm
      Steel fabrication, integrated slide tensioner
    • Front Tyre
      20 x 2.50 in, trials pattern
    • Rear Tyre
      14 x 3.25 in, trials pattern motorcycle construction
    • Front Suspension
      Air spring fork, rebound adjustment, 125 mm wheel travel
    • Rear Suspension
      Monoshock air spring, rebound adjustment, 120 mm wheel travel
    • Front Brake
      180 mm front rotor, hydraulic 2 piston disc brakes, ball ended levers with reach adjustment
    • Rear Brake
      180 mm solid rear rotor, hydraulic 2 piston disc brakes, ball ended levers with reach adjustment, with guard
  • Dimensions & Weights
    add remove
    • Width Handlebars
      26 in
    • Height Without Mirror
      38.2 in
    • Seat Height
      27.6 in
    • Dry Weight
      90 lbs
    • Length
      61.4 in
    • Seat height range
      700 mm ± 10 mm (525 mm with included seat insert fitted, see product images).
    • Wheel base
      42.7 in
    • Ground clearance
      10 in
    • Handlebar height
      36.6 in
    • Footpeg height
      12 in
    • Front rim
      20 x 1.60 in, aluminium
    • Rear rim
      20 x 1.60 in, aluminium
  • Electronics & Controls
    add remove
    • Throttle type
      Dual sensing elecronic throttle
    • Ride / limit modes
      Power limit, Speed limit, Throttle response
    • PIN lock
      True
    • Status display indicators
      Battery SOC, Fault codes, Thermal warning
    • Kill switch type
      Magnetic kill switch with lanyard
  • Charging
    add remove
    • Charger type
      External
    • Charge connector
      Twist to release type
    • Charge time 0–100% (min)
      167
  • Safety & Compliance
    add remove
    • Minimum rider age (years)
      7
    • Maximum rider weight
      60.5 kg
  • Colour options
    add remove
    • Triumph Performance Yellow
      From £3,195
